Standard Products / Site Lighting / Glimmer Uplight

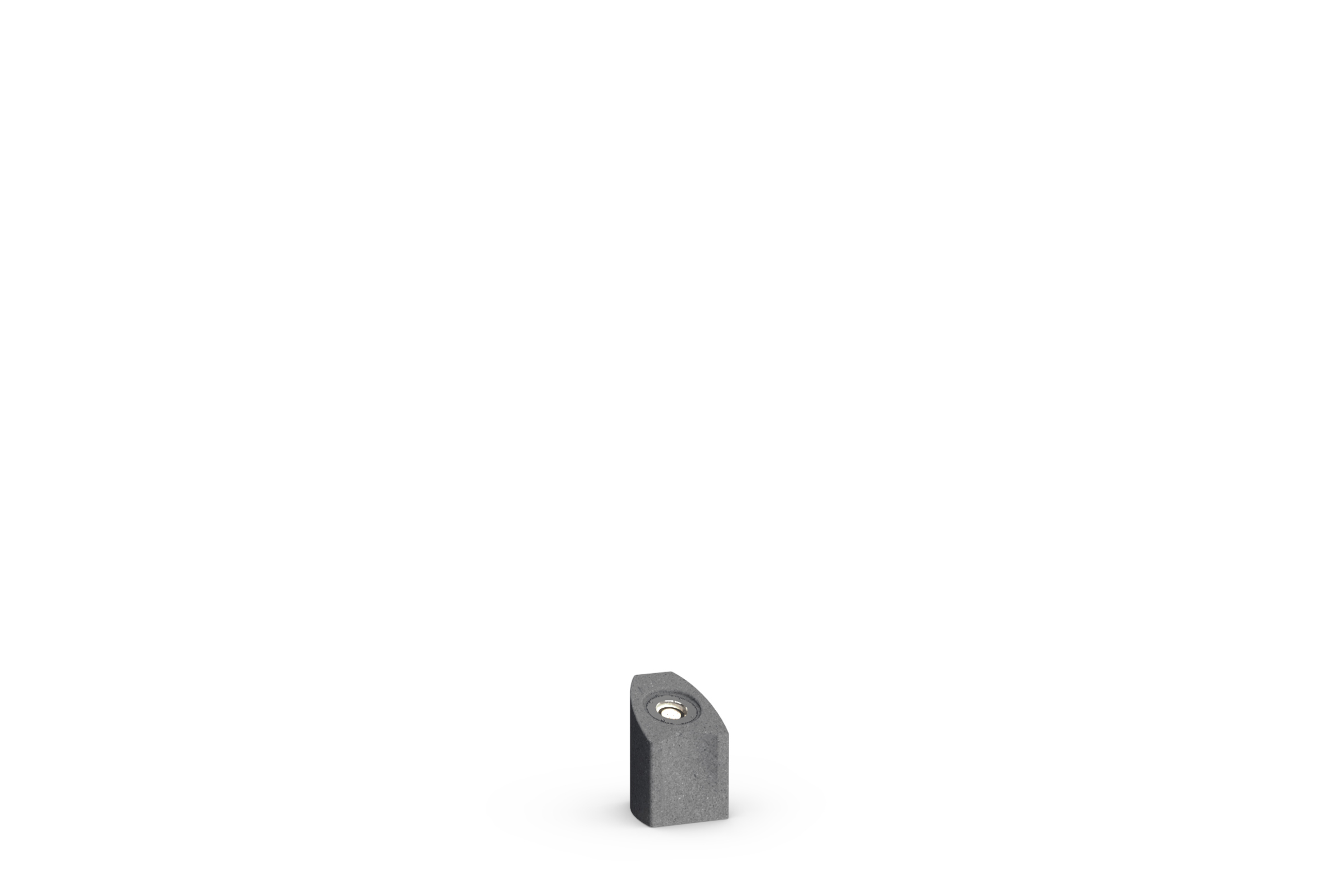

Glimmer Uplight

Product Number: ST-UL-B
A more square-shaped precast concrete uplight, available in five colors.

Colors

Mission White
French Gray
Natural
Latte
Custom

Materials

Size and Weight

Width: 6 1/2"
Length: 7 1/4"
Height: 9 5/8"
Weight: 20 lbs
View All Available Sizes & Downloads

Light Engine

2700K 1.3W  98 Lumens
2700K 4.4W  332 Lumens
2700K 9.2W 695 Lumens
4000K 1.3W 104 Lumens
4000K 2.5W 199 Lumens
4000K 4.4W 350 Lumens
4000K 9.2W 732 Lumens

Installation Options

In-Ground

In-Ground Icon
ST-UL-B
ST-UL-B
ST-UL-B
ST-UL-B
Previous Show All Show Selected Only Clear Selections Next
Model Number Diameter Width Length Height Thickness Weight Top OD Bottom OD Top ID Bottom ID Profile 2D CAD 2D CAD 2D CAD 2D CAD Specs Specs 3D Model 3D Model
ST-UL-B 6 1/2" 7 1/4" 9 5/8" 20 lbs 2D CAD Specs 3D Model
Lighting Downloads
Test Data Test Data: 22-ST-UL-B-2700K-1.3W.pdf
Photometric Data Photometric Data: 22-ST-UL-B-2700K-1.3W.ies
Test Data Test Data: 23-ST-UL-B-2700K-4.4W.pdf
Photometric Data Photometric Data: 23-ST-UL-B-2700K-4.4W.ies
Test Data Test Data: 24-ST-UL-B-2700K-9.2W.pdf
Photometric Data Photometric Data: 24-ST-UL-B-2700K-9.2W.ies
Test Data Test Data: 25-ST-UL-B-4000K-1.3W.pdf
Photometric Data Photometric Data: 25-ST-UL-B-4000K-1.3W.ies
Test Data Test Data: 26-ST-UL-B-4000K-2.5W.pdf
Photometric Data Photometric Data: 26-ST-UL-B-4000K-2.5W.ies
Test Data Test Data: 27-ST-UL-B-4000K-4.4W.pdf
Photometric Data Photometric Data: 27-ST-UL-B-4000K-4.4W.ies
Test Data Test Data: 28-ST-UL-B-4000K-9.2W.pdf
Photometric Data Photometric Data: 28-ST-UL-B-4000K-9.2W.ies
✕
